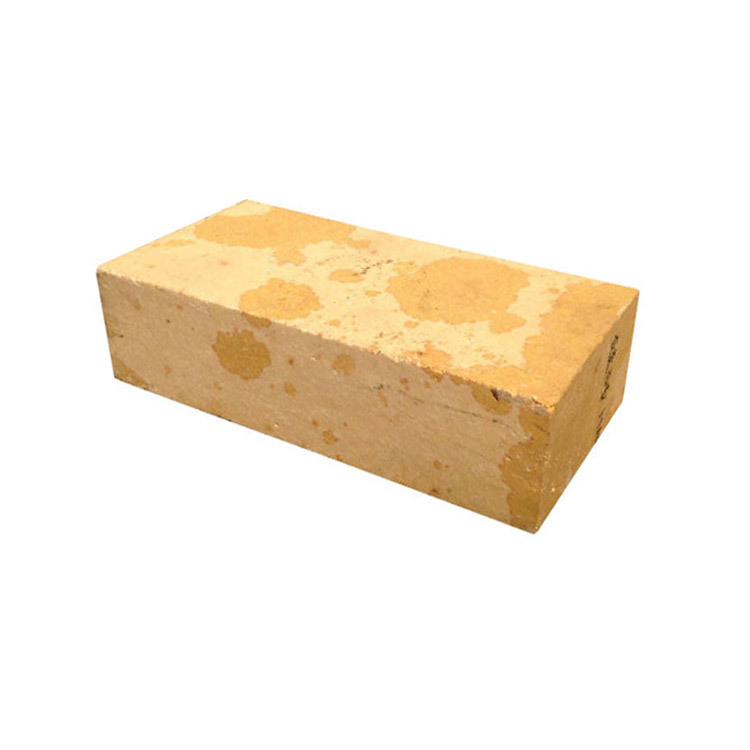

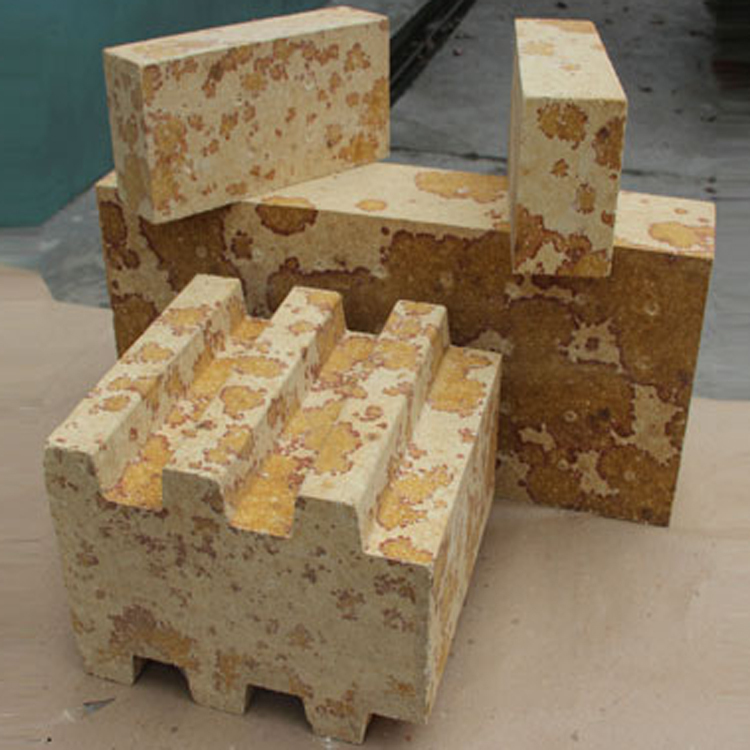

Silica Cib Rau iav Rauv
Silica cib yog ua los ntawm cov khoom siv pob zeb quartz, cov ntsiab lus ntawm SiO2 yog siab dua 93 feem pua, nws muaj kev tiv thaiv zoo rau cov kua qaub slag thiab zoo thermal conductivity. Thiab lub refractoriness yog 1690 ~ 1710 degree, RUL yog tshaj 1620 degree.
Hauj lwm lawm
Kev piav qhia
Silica cibrau iav rauv yog hais txog cov khoom siv silicon refractory siv nyob rau hauv qhov kub ntawm qhov kub ntawm lub khob kiln (tsis nyob rau hauv kev sib cuag nrog cov iav kua), nws yog ib yam ntawm cov kua qaub refractory tsuas yog ua los ntawm tridymite, cristobalite thiab ib tug me me ntawm residual quartz li. zoo li iav theem. Cov khoom siv raw refractory yog ntuj silica xuab zeb uas nws SiO2cov ntsiab lus yuav tsum ntau tshaj 96 feem pua. Siab dua SiO2Cov ntsiab lus hauv silica xuab zeb, qhov kub siab dua silica bricks tiv taus.
Silica cibyog siv nyob rau hauv kev tsim kho ntawm regenerative chamber, chute, combustion chamber, coking chamber, rauv lub ru tsev thiab lwm yam qhov chaw ntawm lub coke ncu. Silica Cib Rau iav KilnMainly siv rau coke cub ntawm coking chamber thiab combustion chamber muab faib, steel qhib hearth ntawm regenerative chamber thiab sediment chamber, soaking rauv, iav melting rauv, refractory silica cib cov ntaub ntawv thiab ceramic firing kiln thiab kiln ntawm lub vault thiab lwm yam kev txhawb nqa. ntu. Kuj tseem siv rau hauv qhov cub kub kub ntawm qhov kub thiab txias qhov chaw thiab cov kua qaub qhib hearth rauv lub ru tsev.
Specification
| Cov khoom | Silica cib | Silica cib | |
| Coke Cub | iav Furance | ||
| Al2O3 feem pua | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua lossis sib npaug rau 0.5 | |
| Fe2O3 feem pua | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua lossis sib npaug rau 0.8 | |
| SiO2 feem pua | Ntau dua lossis sib npaug rau 94.5 | Ntau dua lossis sib npaug li 96 | |
| K2O plus Na2O feem pua | CaO Less than los sib npaug 2.5 | CaO Less than los sib npaug 2.5 | |
| Refractoriness RºC | Ntau dua lossis sib npaug rau 1650 | Ntau dua lossis sib npaug rau 1650 | |
| Refractoriness nyob rau hauv Load KD ºC | KD Ntau dua lossis sib npaug rau 1650 | KD Ntau dua lossis sib npaug rau 1650 | |
| Permanent Linear Change feem pua (1450ºC × 2h) | {{0}}}~ ntxiv 0.2 | {{0}}}~ ntxiv 0.2 | |
| Pom tseeb Porosity feem pua | Tsawg dua los yog sib npaug 22 | Tsawg dua los yog sib npaug li 24 | Tsawg dua los yog sib npaug li 21 |
| Qhov ntom ntom g / cm3 | Tsawg dua lossis sib npaug li 2.33 | Tsawg dua lossis sib npaug li 2.34 | Tsawg dua lossis sib npaug li 2.34 |
| Txias crushing zog Mpa | Ntau dua lossis sib npaug li 40 | Ntau dua lossis sib npaug li 35 | Ntau dua lossis sib npaug li 35 |
| 0.2MPa nkag tus nqi feem pua | Residue Quartz Tsawg dua lossis sib npaug rau 1.0 feem pua | Tsawg dua lossis sib npaug rau 1.0 feem pua | |
| Thermal Expansivity (1000ºC) | Tsawg dua los yog sib npaug rau 1.28 | Tsawg dua lossis sib npaug li 1.30 | / |
| Daim ntawv thov | Hauv qab thiab phab ntsa | Regenerator Hauv qab thiab phab ntsa | iav Furance |
Nta
1) Silicon oxide yog siab dua 95 feem pua.
2) Zoo acid corrosion kuj.
3) High softening point nrog kub.
4) Tsis muaj shrink nyob rau hauv hlawv ntau zaus.
5) Kub ntawm refractoriness nyob rau hauv load yog siab tshaj 1650º C.
6) Muaj peev xwm ruaj khov, Zoo Siab, Kev Pabcuam Zoo, Tus nqi sib tw yog qhov zoo tshaj plaws ntawm peb cov khoom.
Tuam txhab Profile
ZhenAn yog ib lub chaw tsim khoom thiab lub Hoobkas nyob hauv Anyang City, Henan Province, Suav teb, muaj kev tshaj lij ntawm ntau tshaj 3 xyoo dhau los hauv kev tsim khoom ntawm Metallurgical thiab Refractory.
Peb lub Hoobkas npog thaj tsam ntawm 30,{1}} square metres, nws muaj cov cuab yeej ua tiav cov khoom siv niaj hnub no, ob lub hauv paus loj xws li hydro-metallurgy, ob lub chaw soj nstuam tseem ceeb thiab lub chaw kuaj cov ntaub ntawv metallurgical nrog ntau tus kws tshawb fawb laus.
Cim npe nrov: silica cib rau iav rauv
